Data collection and analysis
Cl- data was obtained from 2 of Alberta's river monitoring programs: the Long-Term River Network (LTRN) and the Tributary Monitoring Network (TMN). The LTRN program monitors major rivers whereas the TMN program typically monitors smaller tributaries. Although an expansion of the TMN program into the North Saskatchewan River started in 2019, there was insufficient data to include these tributary sites in this analysis.
To understand spatial variability across the province, the concentration of Cl- from 2016 to 2019 was compared across all sites. To investigate the potential impact of Cl- on aquatic biota and irrigation, Cl- concentrations were compared to the Canadian Council of Ministers of the Environment (CCME) guidelines for chronic, acute and crop-specific surface water. To understand potential changes in Cl- over time, sites with more than 10 years of monthly monitoring data were further analyzed for temporal trends.
For more detailed information on the methods used, consult the report on Chloride in Surface Waters of Alberta’s Rivers – Condition of the Environment Report 2021.
Chloride concentrations in Alberta’s rivers
- For the 2016 to 2019 reporting period, upstream headwater monitoring sites often had lower Cl- concentrations that are frequently below analytical detection and thus cannot be precisely measured in water samples.
- Cl- concentrations typically increased from headwaters to downstream sites across the province, with the exception of the Bow and Battle Rivers. In the Bow River, Cl- concentrations increased towards their peak in the Calgary region and remained elevated thereafter. In the Battle River, Cl- concentrations decreased from the upstream site to downstream site (Figure 1 (JPG, 648 KB) and Figure 2 (JPG, 645 KB)).
- Cl- concentrations were often higher in smaller tributaries relative to major rivers across Alberta (Figure 2 (JPG, 645 KB) and Figure 3 (JPG, 306 KB)).
Comparison to guidelines
- Between January 2016 and December 2019, 5 of the 3,858 samples showed exceedances of the CCME protection of aquatic life (PAL) acute guideline. These include 2 exceedances in Nose Creek, 1 in Fish Creek in the Bow River watershed, and 1 each at Waskasoo Creek and Threehills Creek Site 2 in the Red Deer River watershed (Figure 4 (JPG, 170 KB)).
- In the same timeframe, there were 54 PAL chronic guideline exceedances, of which 29 occurred in Nose Creek, 9 in Fish Creek and 9 in Waskasoo Creek. Additionally, there were 79 irrigation guideline (i.e., 100 mg/L) exceedances, of which 37 occurred in Nose Creek, 11 in Fish Creek, 11 in Waskasoo Creek, 7 at the Battle River Site 1, and 6 in Pine Creek (Figure 4 (JPG, 170 KB)).
- The Nose Creek monitoring site in Calgary stands out as having the only median concentration above the PAL chronic guideline with a median Cl- of 145 mg/L (Figure 4 (JPG, 170 KB)). Additionally, 84% of the 44 samples taken from Nose Creek exceeded the irrigation guideline and 66% exceeded the PAL chronic guideline.
How chloride concentrations are changing in Alberta’s rivers
- In northern Alberta, Cl- concentrations were found to be decreasing over time at 2 of the 10 sites in the Athabasca and Peace Rivers. For all other sites in northern Alberta, the trends were not significant or there were too many Cl- samples below the limits of detection (for example, censored) to confidently assess temporal trends (Figure 5 (JPEG, 645 KB)).
- In contrast, Cl- concentrations were found to be increasing at 14 of 19 sites monitored across central and southern Alberta. Sites on the Bow River near and downstream of Calgary had the largest annual percent increases that were between 3 to 4% per year (Figure 5 (JPEG, 645 KB)).

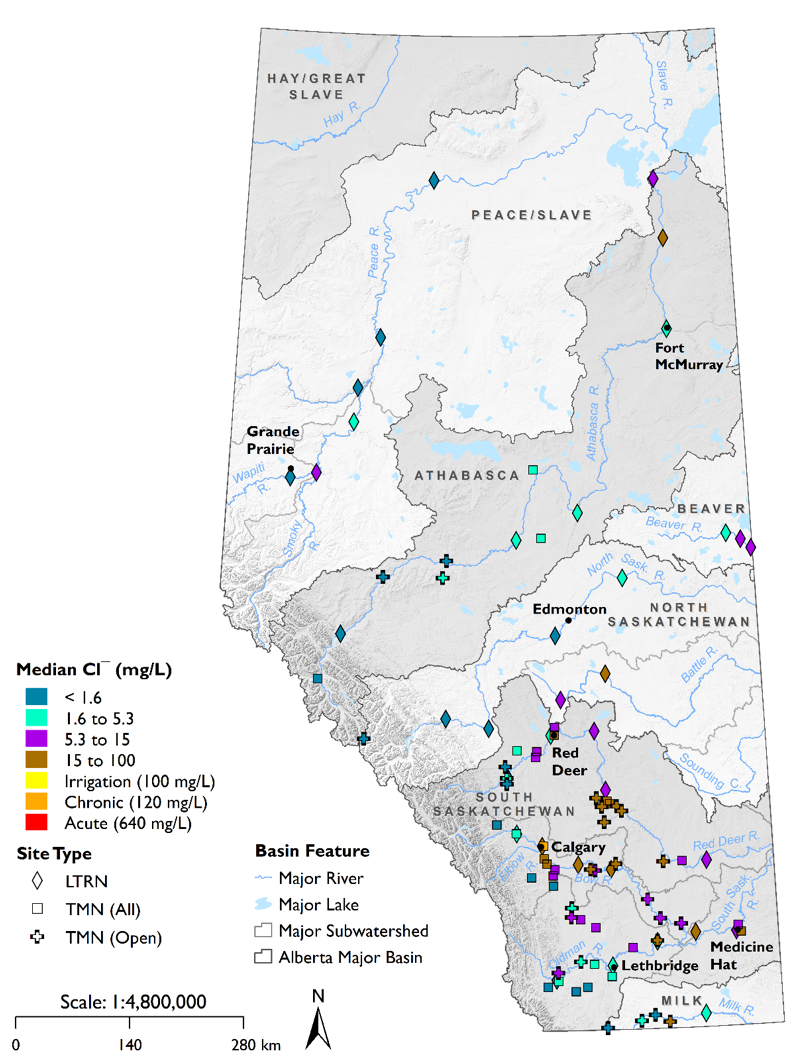

Figure 1. Map of the median Cl- concentrations at LTRN and TMN sites from 2016 to the end of 2019. TMN (All) indicates that samples were obtained generally throughout the year whereas TMN (Open) indicates that samples were predominantly obtained during the open water season. The percentile of each site’s median Cl- concentrations was used to group sites into bins based on the percentiles of all sites included in the analyses (that is, 0 to 25, 25 to 50, 50 to 75 and 75 to 100 percentiles). Additional bins were created to reflect irrigation (>100 mg/L), chronic (>120 mg/L) and acute (>640 mg/L) guideline exceedances.
View full-size Figure 1 (JPG, 648 KB)

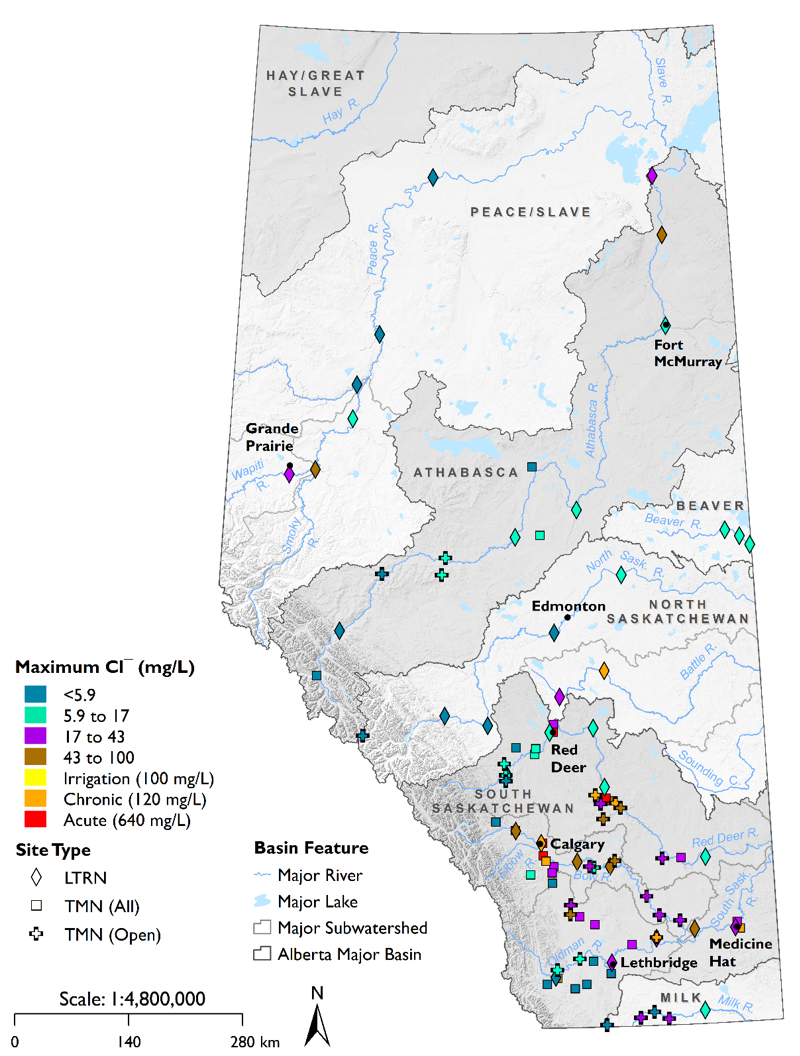

Figure 2. Map of the maximum Cl- concentrations at LTRN and TMN sites from 2016 to the end of 2019. TMN (All) indicates that samples were obtained generally throughout the year whereas TMN (Open) indicates that samples were predominantly obtained during the open water season. The percentile of each site’s maximum Cl- concentrations was used to group sites into bins based on the percentiles of all sites included in the analyses (that is, 0 to 25, 25 to 50, 50 to 75 and 75 to 100 percentiles). Additional bins were created to reflect irrigation (>100 mg/L), chronic (>120 mg/L) and acute (>640 mg/L) guideline exceedances.
View full-size Figure 2 (JPG, 645 KB)

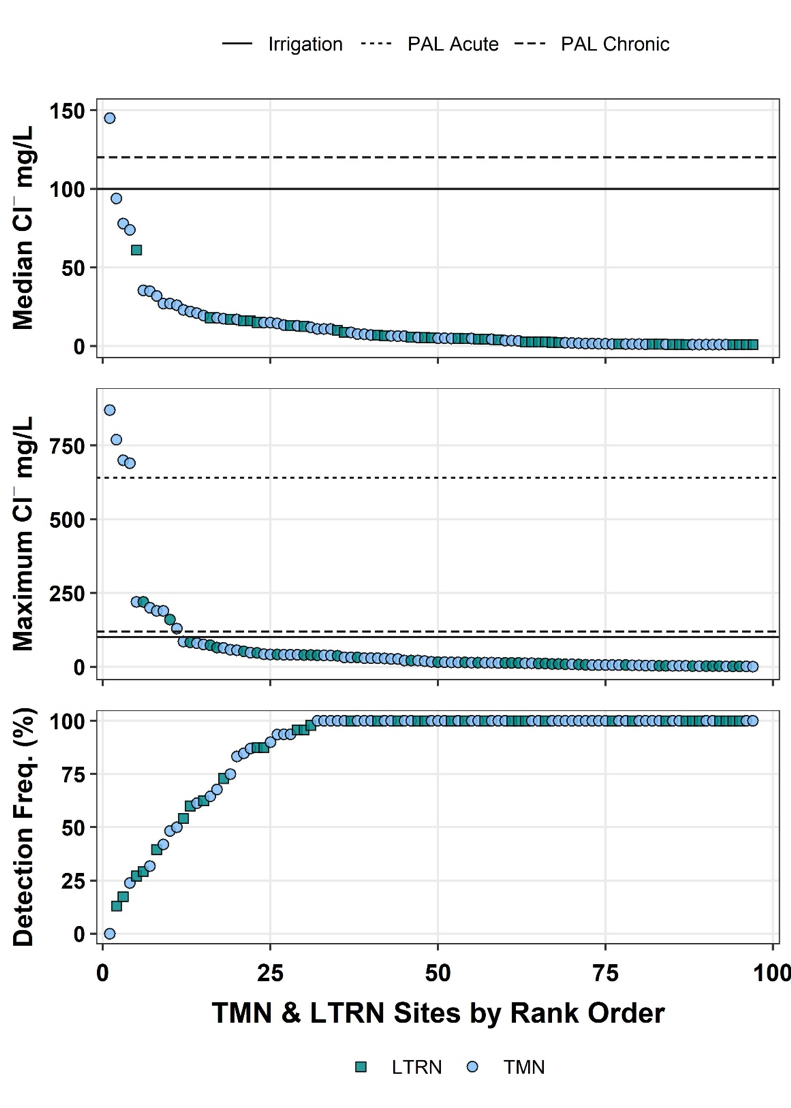

Figure 3. Plot of the rank order of median (top) and maximum (middle) Cl- concentrations along with their detection frequency at sites from January 2016 to December 2019.
View full-size Figure 3 (JPG, 306 KB)

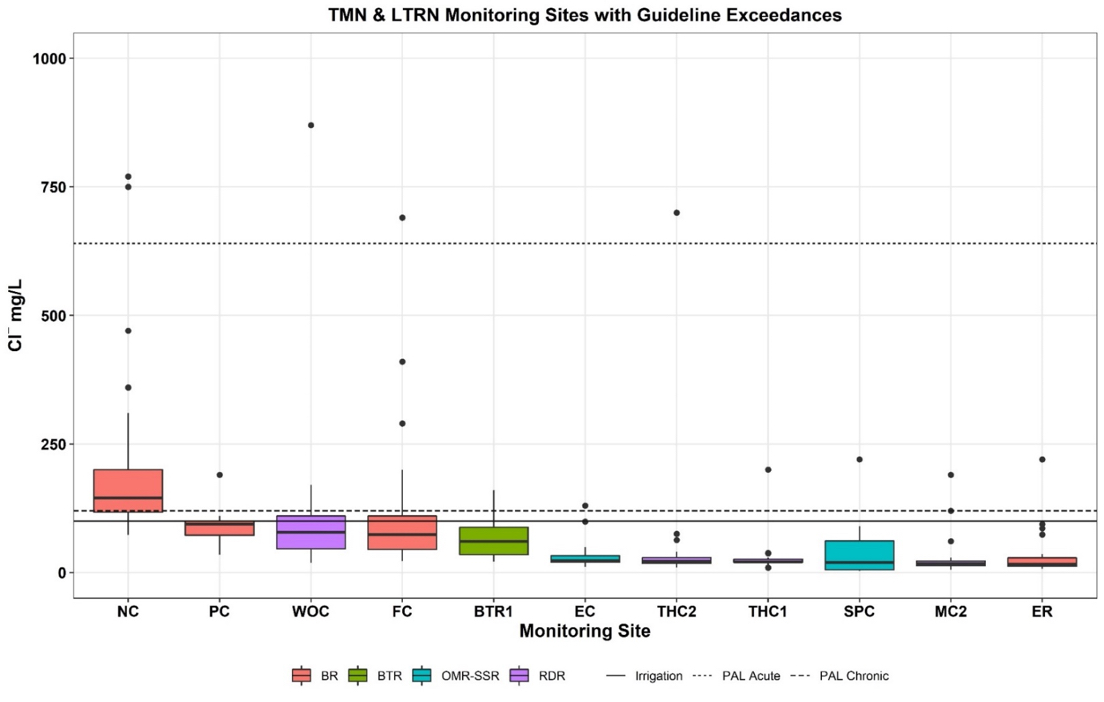

Figure 4. Box plot of TMN and LTRN monitoring sites that had a guideline exceedance between January 2016 and December 2019. Monitoring sites in this plot include Nose Creek (NC), Pine Creek (PC), Waskasoo Creek (WOC), Fish Creek (FC), Battle River (BTR) Site 1, Expanse Coulee (EC), Three Hills Creek (THC) Site 1 & 2, Seven Persons Creek (SPC), Michichi Creek (MC) and the Elbow River (ER). The line in the middle of the box depicts the median (for example, middle) of the dataset, the box edges represent the 25th and 75th percentiles and the area inside the box covers the interquartile range. The whiskers extend outward from the box to the highest or lowest value that is within 1.5 times the interquartile range. Data beyond the whiskers depict outliers, which are plotted as points on the box plots.
View full-size Figure 4 (JPG, 170 KB)

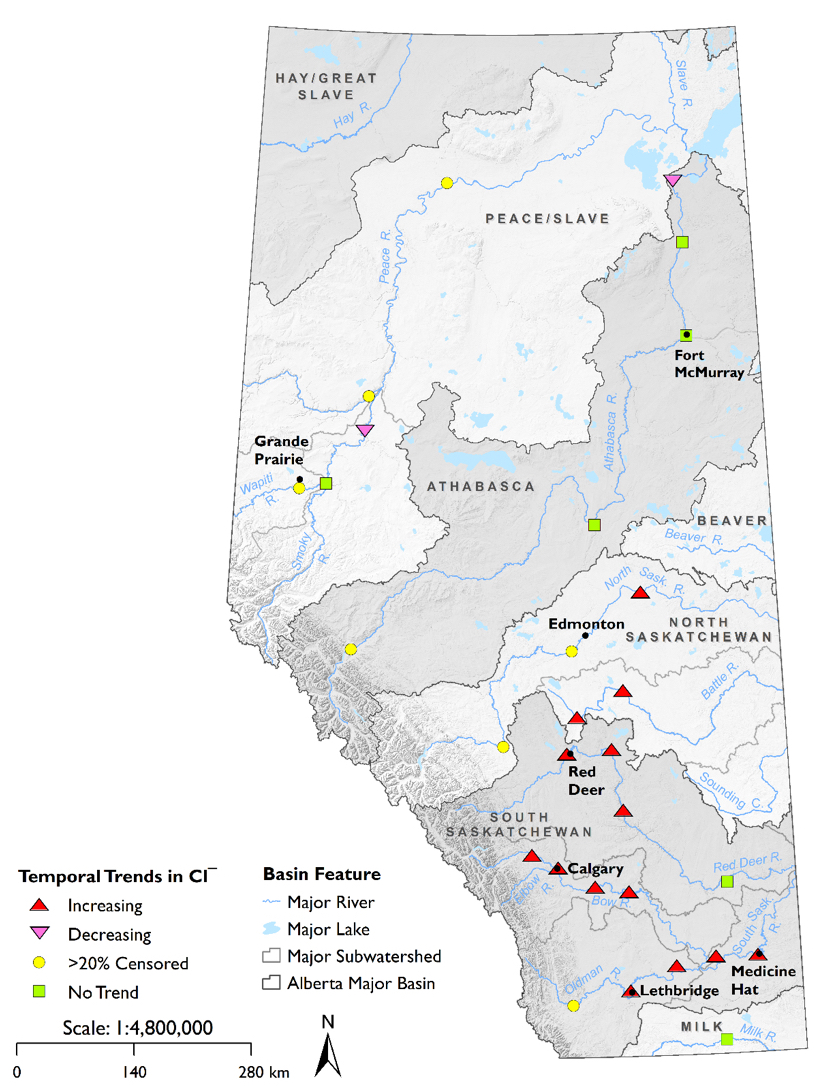

Figure 5. Results from the trend analyses for all annual samples highlighting locations in the province where Cl- was found to be increasing or decreasing over time along with sites without significant trends or where there was too much data below the limits of analytical detection (that is, censored data > 20%) to conduct the analysis. Trend analyses were only conducted for LTRN sites as TMN sites did not have sufficient years of data to conduct trend analysis.
View full-size Figure 5 (JPG, 645 KB)
